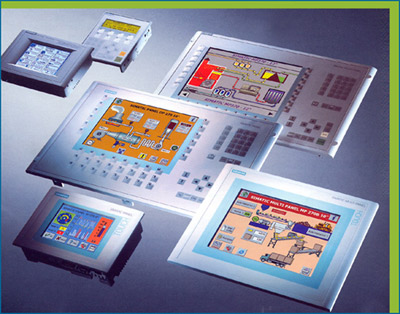

Operator Interfaces to suit all requirements


Operator Interfaces

Operator Interfaces

Operator Interfaces

Operator Interfaces

Operator Interfaces

Operator Interfaces



The device classes

Operators interfaces from SIMATIC HMI
Comprehensive product family
SIMATIC HMI® offers the full product family for machine-level human machine interfaces from a single source: starting with Push Button Panels, Panels, Multi Panels and Mobile Panels, right up to PC-based solutions with Panel PCs and the ProTool/Pro® Runtime visualization software.
The innovative hardware and software solutions are scalable in price and performance as well as in the degree of openness and expandability offered. As the global leader, hundreds of thousands of SIMATIC operator interfaces are in use in the most diverse industries and applications.

  • Micro Panels
  • Mobile Panels
  • Panels
  • Multi Panels

Rugged and compact for machine-level use
With degree of protection IP65 on the front, a high level of electromagnetic compatibility, and extreme vibration immunity, the SIMATIC operator interfaces are eminently suitable for machine-level use in harsh industrial environments. Thanks to their compact design with shallow installation depth, the stationary operating interfaces can fit in anywhere, even where installation space is restricted. Mobile Panels are industry-compatible thanks to their extremely rugged and shock-proof housing of allround degree of protection IP65. Their low weight and ergonomic design make them especially user-friendly.



Human Machine Interface

Human Machine Interface

Mobile Panels

Mobile Panels



ALL SIMATIC operator interfaces at a glance :

 Micro Panels
 Perfect for the S7-200-simple and low-cost
Micro Panels
Micro Panels
 Mobile Panels  Highest degree of mobility for HMI
Mobile Panels

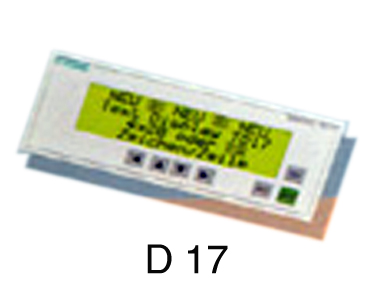

 Panels  Text Panels
 The small versatile units that pack a punch
Panels
Panels
Panels
Panels
 Panels  170 series- The clever way to start low  cost and   innovative
Panels
Panels
Panels
 Panels  270 series The all-rounder with optimal  Power  and performance
Panels
Panels
 Multi Panels  270 series - Convincing in power,  performance  and expandability
Multi Panels
 Multi Panels  370 series - Meets the highest demands for   power,  performance and expandability
Multi Panels

The Right Decisoin :

    Operator interfaces from SIMAIC HMI
  • One configuration software fits all
  • Components Part of Totally Integrated Automation
  • Open for the most diverse automation systems
  • Innovative human machine interface
  • Export - oriented
The Highlights at a glance :

  • Rugged and compact
  • High degree of flexibility trough stationery or mobile operator panels
  • Bright displays for the best possible readability
  • Simple and secure operation with ergonomically designed keypad or intuitively with touch panel
  • Long service life of the display backlighting
  • One configuration software fits all
  • Simple and fast configuring
  • Remote download for configuration and firmware
  • Integrated into the SIMATIC world
  • PLCs from the most diverse manufacturers can be connected
  • Drivers and available interfaces already onboard at no additional cost
  • Global in use with comprehensive language support, including Asian languages

One configuration software fits all SIMATIC ProTool :

    Software Update Service :

  • Automatic supply of the latest software release (upgrade/service packs).
  • Low-cost and user-friendly method of keeping the software up-to-date at all times.
  • Optional software packages :

  • ProAgent : targeted and fast process fault diagnostics in plants and machines in conjunction with SIMATIC S7
  • ThinClient / MP : Multi Panels as terminal clients of a Windows 2000 terminal server (from ProTool V6 + 5P2).
  • WinAC MP : software PLC based on Windows CE, runs on the MP 370 multifunctional platform MP 370 12"
